Aluminium Titanium Boron Hlau

Hlau txhuas titanium boron yog lub tshuab ua kom cov noob nplej uas muab los ua lub kauj txuas ntxiv thiab pub rau hauv cov hlau ntws ua ntej casting. Nws ua haujlwm tib yam li lub tshuab ua kom cov titanium-boron hauv daim ntawv thaiv, tab sis vim tias nws tau pub tas li nws khaws cov tshuaj yaj kom ntev li ntev tau qhov casting kav ntev. Nws yog qhov tsim nyog rau kev ua kom cov noob nplej ntawm txhuas thiab txhuas alloys, txhawm rau txhim kho lub zog, plasticity thiab tag nrho cov khoom siv kho tshuab ntawm cov khoom txhuas thiab castings.


Cov Khoom Qhia Txog Khoom

Txheej Txheem Cej Luam Khoom

Nws siv sab nraum lub cub tawg. Thaum cov txhuas yaj ntws, pub cov hlau rau hauv lub tshuab ntxhua khaub ncaws los ntawm lub tshuab pub. Thaum cov dej txhuas raug tso tawm, ncaj qha ntxig cov hlau txhuas-titanium-boron rau hauv lub tank dej txhuas los ntawm lub tshuab pub kom yaj thiab ua kom zoo, thiab xyuas kom meej tias cov hlau txhuas-titanium-boron thiab cov dej txhuas sib cuag ntau dua 1 feeb (zoo dua 2-10 feeb). Feem ntau cov tshuaj yog 0.8–1.3 kg ib tuj ntawm txhuas (hlau txoj kab uas hla 9.5 hli; qhov hnyav linear 0.192 kg / m).

1. Kev noj tshuaj tas mus li, yog li cov qauv noob qoob loo tseem ruaj khov thoob plaws hauv ib qho kev sib tw.

2. Pub dawb los ntawm ib tugtitanium boron hlau feeder— tsis tas yuav ntxiv tes thiab tsis tas yuav qhib lub cub tawg.

3. Paub qhov hnyav ib 'meter', yog li tus nqi pub mis yog teeb tsa ncaj qha los ntawm cov hlau throughput.

4. Haum rau cov hlau billet thiab slab castings ntev uas qhov kev ntxiv ntau ntau yuav ploj mus.

5. Txo cov nqi seem thiab txhim kho qhov zoo ntawm qhov chaw, kev sib xws thiab qhov ci ntawm cov profiles.

6. Yooj yim ntxiv, tsis muaj kev poob ntawm titanium lossis boron.

Cov Khoom Siv thiab Cov Lus Qhia Txog Kev Siv

Feature Cov Lus Qhia Tshwj Xeeb
Hom khoom Aluminium titanium boron hlau rau billet casting
Cov qauv tsim tawm 5% Ti, 1% B
Txoj kab uas hla ntawm cov hlau Kwv yees li ntawm 9.5 hli
Qhov hnyav ncaj 0.192 kg ib 'meter'
Qhov hnyav ntawm lub kauj Kwv yees li ntawm 100 kg ib yob (170 kg muaj)
Kev siv tshuaj piv txwv 0.8–1.3 kg ib tonne ntawm txhuas
Lub sijhawm pub mis tsawg kawg nkaus Ntau tshaj 1 feeb; zoo dua yog 2–10 feeb
Txoj kev pub mis Lub tshuab pub hlau tsis siv neeg rau hauv cov dej hlau uas yaj

Cov ntawv thov

Cov hlau titanium boron txhuas yog siv rau ntawm cov kab casting txuas ntxiv thiab ib nrab txuas ntxiv qhov twg cov qauv noob yuav tsum sib xws dhau ntawm qhov casting ntev. Nws yog dav siv hauv cov castings txhuas, txhuas profiles, txhuas cables, txhuas ntawv ci thiab lwm yam lag luam.

Kev Ntim Khoom thiab Kev Muab Khoom

1. Cov kauj hlau kwv yees li 100 kg, nrog rau 170 kg kauj hlau muaj.

2. Cov kauj qhwv thiab palletized kom tiv thaiv kev puas tsuaj thaum thauj mus los thiab pub ncaj qha los ntawm pallet.

Khaws cov kauj kom qhuav thiab hauv tsev. Lub kauj uas tau sawv hauv qhov chaw ntub dej yuav nqa cov dej noo ntawm qhov chaw mus rau hauv cov yaj, yog li khaws cov ntaub qhwv kom txog thaum lub kauj raug thauj mus rau ntawm lub feeder. Cov hlau yuav tsum pub tsis muaj kinks - lub kauj kink yuav txhaws lub feeder thiab cuam tshuam kev dosing nruab nrab ntawm kev cam.

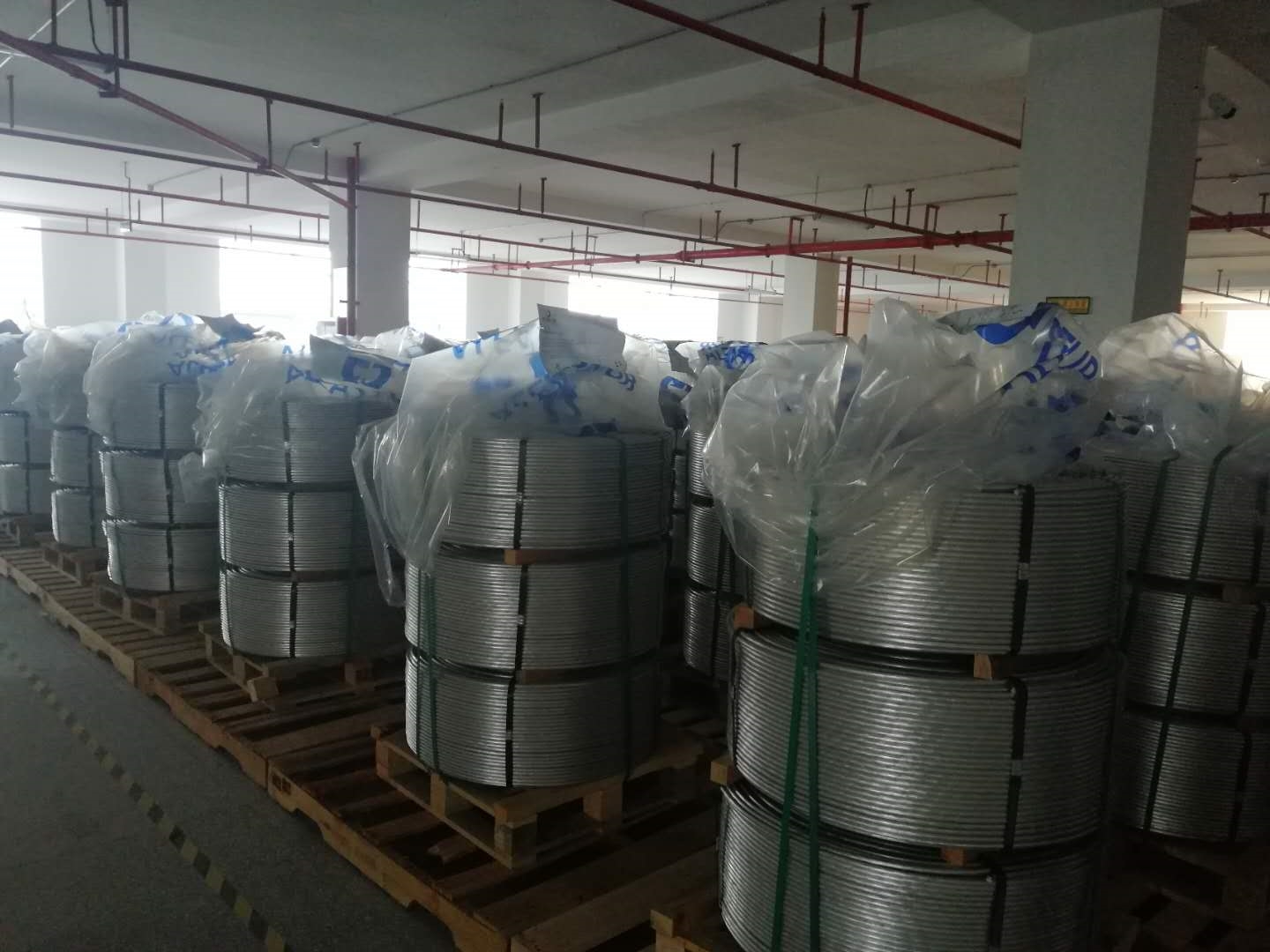

Hlau txhuas-titanium-boron ntim rau hauv cov hnab tiv thaiv dej noo
